Two-way positioning of inside and outside angles 90°
Smooth opening and silent operation
Super strong load-bearing capacity up to 150kg
With intelligent anti-pinch function at the factory
Automatic damping and buffering combination
No restrictions on door material, flexible creation of customized space opening
Multiple personalized door opening methods are available
Club /Villa / High-end Residence / Large Balcony/ Office
|
Model |
Direct drive center axis door opener/Direct drive off-axis door opener |
|
Door Width |
700mm~2000mm |
|
Door Weight |
≤150kg |
|
Application |

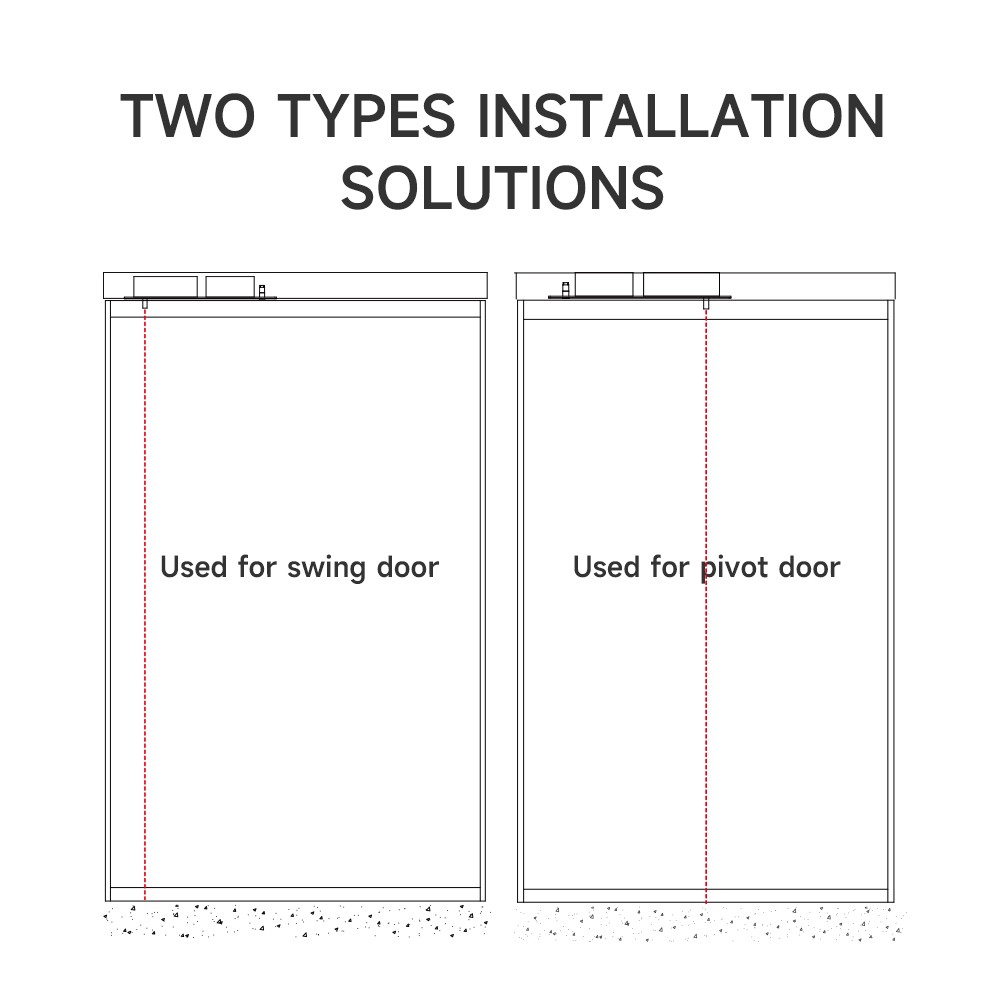

Single door/ Double door / Multi-door linkage |
|
Power Type |
AC110-240V，50/60HZ |
|
Output Voltage |
DC24V/12V |
|
Rated Power |
60W |
|
Static Power |
5W |
|
Open/Close Speed (0-90°) |
3~12S(8 adjustable levels) |
|
Hold Time |
0~30S(Adjustable) |
|
Resistance Sensitivity |
5-speed adjustable |
|
Quietness Requirements |
Operating noise <50dB |
|
Manual Opening and Closing Force |
≤10N |
|
Repeated Opening and Closing Durability |
500,000 times |
|
Ambient Temperature |
-30℃~50℃ |
