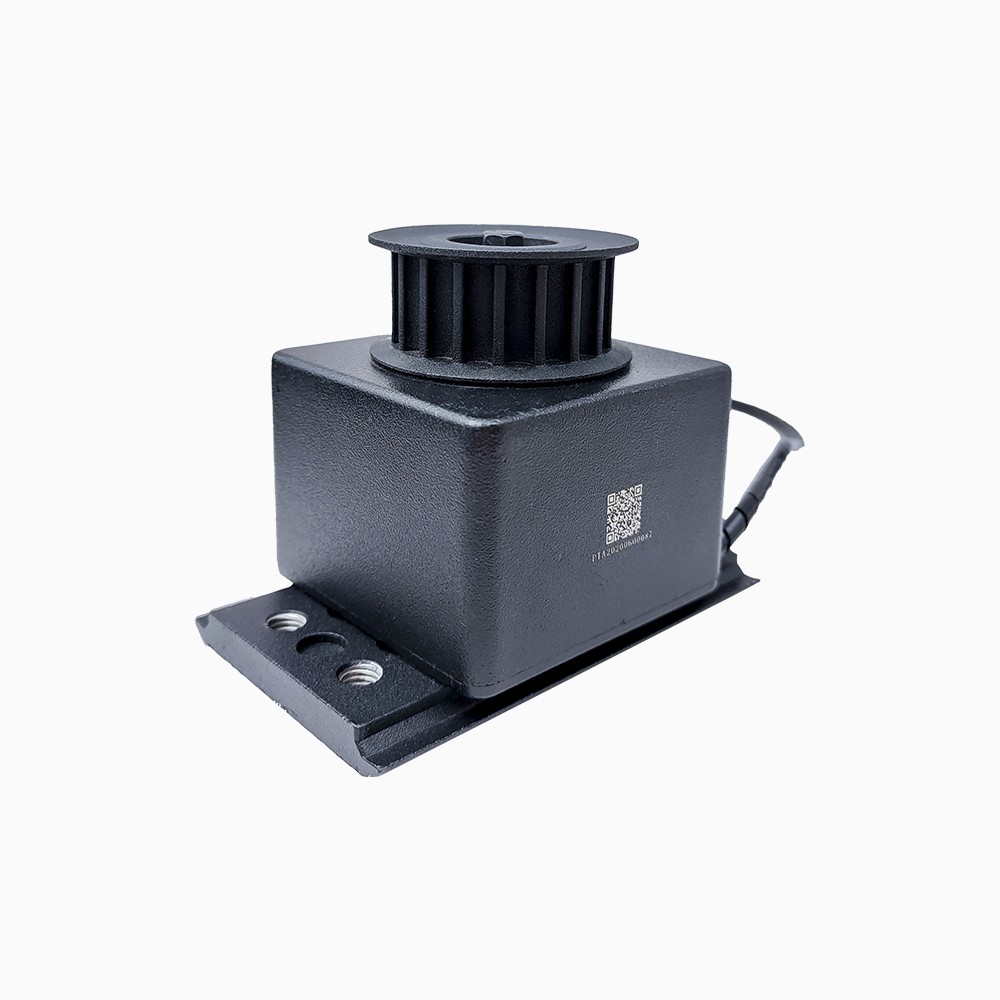

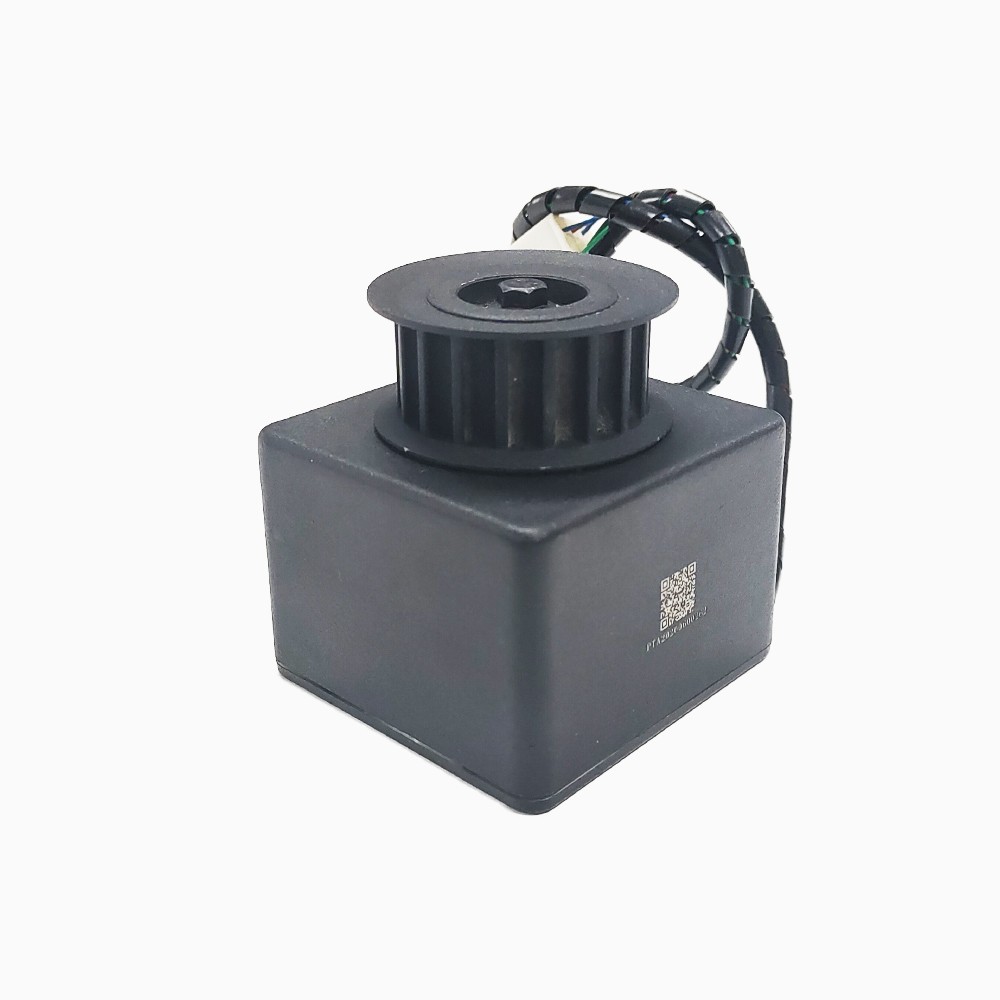

68 vector motor

Drive door weight

≤ 500kg

Product Specifications

Single opening, double opening, linkage

Installation method

Top hanging, side hanging

Suitable for installing door materials

Pure glass doors, non restrained pot edge doors, aluminum alloy doors, this door and other door materials are not limited

Consultation and Purchase

Product Features

BETTER STRUCTURE:No gearbox, using safer direct drive technology.

SMOOTHNESS:Control unit with Vector Control Algorithm, more smooth.

SAFETY:Precise control of opening and closing force, rapid rebound reaction when encountering resistance, easy reverse push, safety anti-pinch

ULTRA QUIET:No transmission structure friction, the door machine runs comfortably and quietly

AUTO LEARNING:Self-learning stroke after power-on, adaptive control operation path, mobile phone debugging, low maintenance cost.

SLIM IN SIZE:Compact linear structure, detachable building block assembly design, improve space utilization

EASY OPERATION:Support pre-factory debugging settings, convenient installation without threshold.

SUPER LOAD-BEARING:Max 500kg, super high, super wide and super heavy door body can be installed at will (some models)

Main Technical Parameters

Model	QT-68
Max. Working Load	<150KG
Rated Power	25W
Rated Voltage	DC 24V
Rated Speed	240 r/min
Rated Moment	1 N·m
Max Torque	2.2 N·m
Protection Level	IP55

Configuration Description

Key Features	Power on self-learning, self regulating the optimal operation state
	Rebound in case of obstruction, and the adjustable range is 1 ~ 5
	Support intelligent anti pinch safe light sensing
	Adjustable range of opening/cosing speed: 100 ~ 500 mm/s
	Adjustable range of door opening in place dwell time 0 ~ 30 s
	Support the mode switching of open, dosed, automatic, inching,manual, door locking,etc
	Support push and go, automatically identify the intention to open the door
	Supports one-click factory Settings restoration
	Good expansion performance
External Port	1 CAN bus communication port
External Port	Multiple numbers input/output terminals
Protection Mechanism	High performance power supply, 24V safe voltage output
	Overload,over-temperature and long-term locked rotor protection
	Rebound when encountering resistance, anti-shear speed in place
