Stable durable Non-contact magnetic linear drive, stable performance, longer service life
Smoothness The main control unit adopts high-precision vector control algorithm,and the operation is smooth and stable
Strong Safety FOC high-precision control, precise control of opening and dosing force, rapid rebound response when encountering resistance,safe and harmless
Ultra Quiet No transmission structure friction, motor running sound ≤ 45dB
Intelligent Learning Self-learning stroke when powered on, adaptive control operation path, mobile phone debugging, low maintenance cost
Convenient Installation Supports pre-factory debugging and setting, and is easy to install without any barriers
Small Size Compact linear structure, detachable building block assembly design, improve space utilization
Intelligent Linkage Supports multi-track independent driving, no linkage accessories required
|
Model |

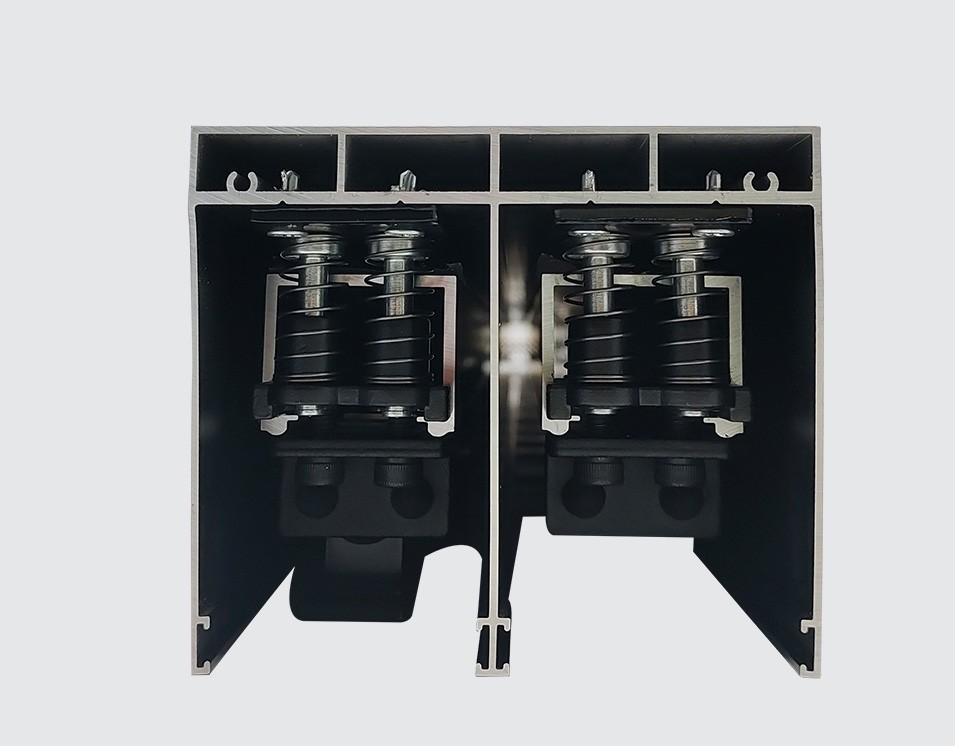

Lower load-bearing ground rail door unit (S) |
Lower load-bearing ground rail door unit (P) |
|
Max Work Load for One Door Frame |
≤200kg |
≤500kg |
|
Application |
One fixed one movable / Two fixed two movable |
|
|
Power Supply Voltage |
AC200-240V,50/60Hz |
AC200-240V,50/60Hz |
|
Rated Voltage |
24V |
|
|
Rated Power |
120W |
240W |
|
Standby Power |
< 5W (No lock state) |
|
|
Open/Close Speed |
100 ~ 500mm/s(Adjustable) |
|
|
Hold Time |
0 ~ 30S(Adjustable) |
|
|
Anti-pinch Force(Safe and harmless) |
≤10N |
|
|
Quiet Requirements |
Operation noise <50dB |
|
|
Ambient Temperature |
-30℃~ 50℃ |
|
