STABLE DURABLE：Non-contact magnetic linear drive, stable performance, longer service life.
SMOOTHNESS：The main control unit adopts high-precision vector control algorithm, and runs smoothly and smoothly.
STRONG SAFETY：FOC high-precision control, precise control of opening and closing force, rapid rebound response when encountering resistance, safe and harmless.
ULTRA QUIET： No transmission structure friction, the door machine runs comfortably and quietly.
INTELLIGENT LEARNING：Self-learning stroke when powered on, adaptive control operation path, mobile phone debugging, low maintenance cost.
CONVENIENT INSTALLATION：Support pre-factory debugging settings, convenient installation without threshold.
SLIM IN SIZE：Compact linear structure, detachable building block assembly design, improve space utilization.
INTELLIGENT LINKAGE：Supports multi-track independent drive, no linkage accessories required.
SUPER LOAD-BEARING：Maximum load-bearing can reach 500kg, super high, super wide and super heavy door body can be installed at will (some models).
|
Model |
Chaofan G (S) |
Chaofan G (P) |
|
Product Specifications |
Single Track /Dual Track /Triple Track /Quad Track |
|
|
Max Work Load For One Door Frame |
≤ 100kg |
≤ 180kg |
|
Application |
Single/Dual Open/Linkage |
|
|

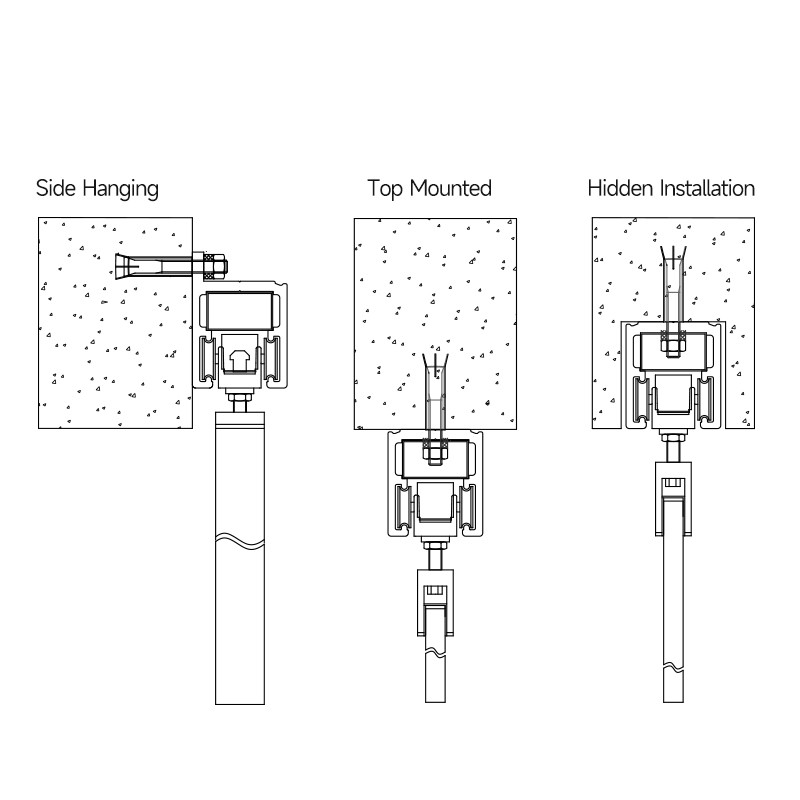

Installation Method |
Top hang / Hidden(With side hang accessories) |
|
|
Applicable Door Materials |
Glass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc. |
|
|
Power Supply Voltage |
AC100-240.50/60hz |
AC200-240,50/60hz |
|
Rated Power |
60W (Single open) |
120W(Single open) |
|
Standby Power |
< 5W(No lock state) |
|
|
Ambient Temperature |
-30℃~50℃ |
|
|
Anti-Pinch Force |
≤10N(Safe and no harm) |
|
|
Open/ Close Speed |
100~500mm/s(Adjustable) |
|
|
Hold Time |
0~30s(Adjustable) |
|
|
Standard Function |
Cell phone Bluetooth APP control,Support automatic, tap, fully open, fully closed, locking the door(electric lock is optional)and other modes to switch freely,Support rich personalized settings such as operating speed, opening and closing time |
|
|
Optional Function |
Multiple digital input / output terminals are reserved to support various switches, remote control, infrared sensor,radar sensor, security light, password / swipe card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods to meet the use of diverse scenarios |
|
